CLAY TRAP W681

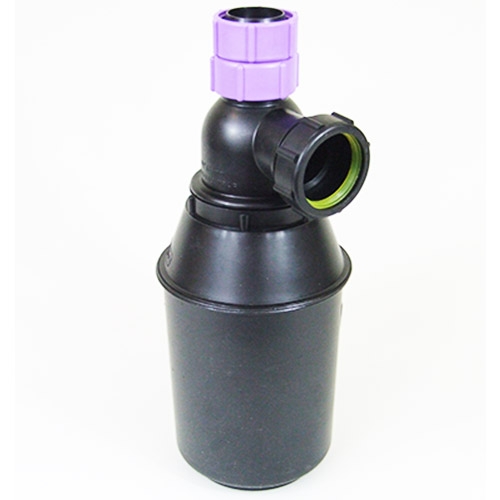

W681 Clay Trap

Product Code: 6996/1
Stock: Temporarily out of stock
If you work with clay, glazes and plaster just take a few minutes to consider what happens to the waste materials that is washed off your hands and equipment.  Yes, it disappears down the waste, but then what happens.  As any clay or glaze and plaster when mixed with water the material settles out, sometimes faster than other times.  The same happens with your materials when flowing down the waste pipe.  As the flow of waste water slows the heavy materials will settle.
Show full details
Price: £129.85

Quantity:
Next


1. Essential Extras

If you are going to connect this Clay Trap to a standard domestic waste 38mm you will need our W681 Adaptor Kit. Then you have everything in the box to easily connect this Trap.

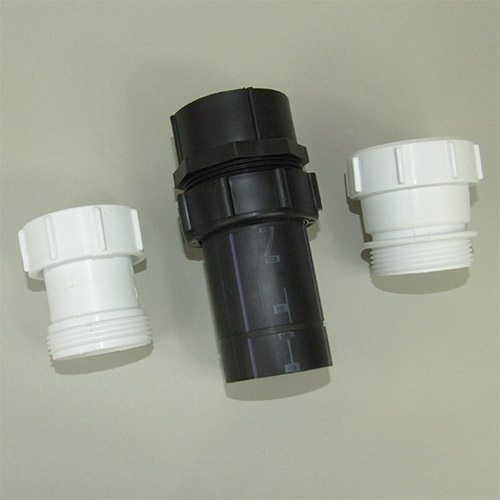

W681 CLAY TRAP ADAPTOR KIT

Clay Trap Adaptor Kit

Kit for 6996
£23.56
Quantity [3 in stock]
Include this item
All items: £129.85

If you work with clay, glazes and plaster just take a few minutes to consider what happens to the waste materials that is washed off your hands and equipment.  Yes, it disappears down the waste, but then what happens.  As any clay or glaze and plaster when mixed with water the material settles out, sometimes faster than other times.  The same happens with your materials when flowing down the waste pipe.  As the flow of waste water slows the heavy materials will settle.  The heavy materials are the particles of clay, the glaze materials and plaster.  Eventually over time they will accumulate and block the waste.  Clearing that block can be very time consuming and tedious.  A trap is an invaluable asset.  The principle of any trap is to slow the flow of waste, encouraging the heavy materials to drop out of suspension, but most importantly to capture the waste in a controlled way for easy disposal.

Consideration must be given to the amount of waste entering the waste and then choose a trap adequate for the purpose.  Also, it must be borne in mind that any trap is only as good as the ongoing maintenance.  The trap needs checking and emptying on a regular basis.  There are no fixed time gaps, as it depends on the sink usage.

This trap is easily emptied by unscrewing the base container from the trap.  A large capacity anti-siphonic trap it has a 76mm liquid seal and holds 2.3litres.  The 1.5in. BSP inlet includes a loose nut coupling for connection to a standard sink waste outlet.  An adaptor kit, stock item 6996/10 is required to connect the outlet to a standard 38mm waste pipe.

Dimensions:


  • Overall Height: 365mm
  • Overall Height with Sink Adaptor fitted: 410mm
  • Overall Depth: 140mm
  • Overall Width: 150mm
  • Clearance Height required for fitting: 460mm

Weight: 480g
